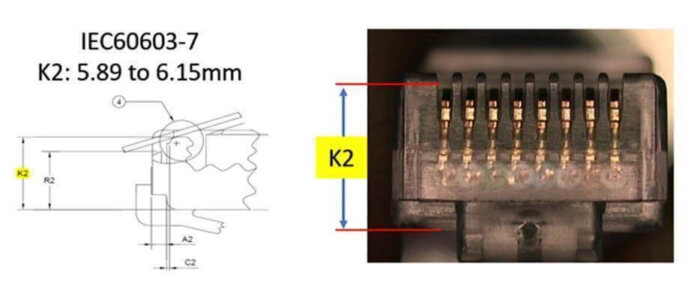

Does patch cord “K2” mean to you?
The following information is not for shoppers if patch cord quality is not important at all. In light of good and bad patch cords being full in the market, figuring out the “K2” can help to free the linking risk. Cable is the major
What is the “Component Rated”?
Can a bad patch cord jeopardize a “Channel”? Patch cords are a common but often overlooked drag on network performance. Not all the patch cords are created equal; the performance of new patch cords is inconsistent. And most cords are only tested for wire-map, not

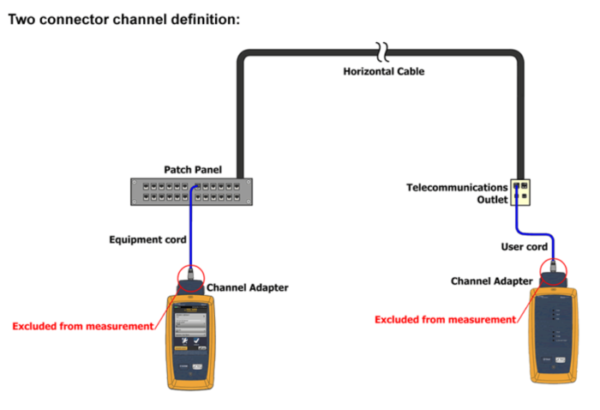

What is Channel test?
Channel is the connection from a switch to a computer, therefore ensuring that the application can function properly. However, the test is only valid as long as the patch cords remain in place. If one cord is replaced, then the test is no longer valid.
What is “Permanent Link”?
Jack/Outlet Horizontal Cable Jack/Patch Panel The permanent link is the fixed portion of the channel – in other words, the portion of a channel that doesn’t change. That means it does not include the patch cord or equipment cord in the “Channel”. One of the
What is C6A “Channel”?
1 Patch Cord 2 Jack/Outlet 3 Patch Cord 4 Jack/Patch Panel 5 Horizontal Cable 6 Jack 7 Patch Cord 8 Jack/Patch Panel 9 Patch Cord C6A cabling is the most popular SCS nowadays. According to ANSI/TIA-568.2-D and ISO/IEC11801-1 class EA, the max. a number of

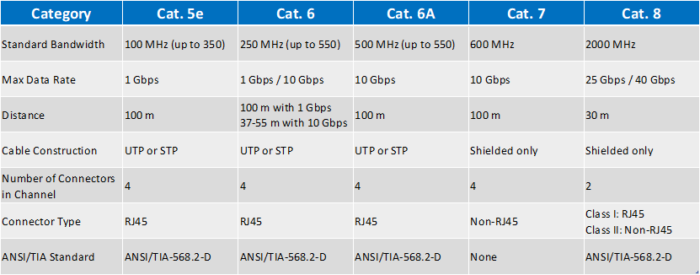

Are your cables in ANSI/TIA-568 standard?
Copper technology of high-speed networks for commercial, industrial, and residential applications has been consistently demanding and increasing. According to ANSI/TIA-568.2-D, Cat5e, C6, C6A, C7 and C8 serve for most Ethernet applications, and key criteria are briefly summarized as above.
