180° Cat.6A STP Keystone Jack, Tool-Free, GHMT PVP
Features
• High-Density design for 1U-48port keystone panel, extreme performance design for Hyper-Scale and Edge Data Center
• GHMT PVP(PREMIUM Verification Program) verified ISO/IEC 11801-1 and IEC 60603-7-51 Cat.6A Connecting-Hardware including the 4PPoE performance
• 100% Cat.6A performance tested in factory
• Perfect EMC performance by the full shielded of zinc Die-Casting material and grounding block design
• Easy and Tool-Free in field termination, T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified
180° STP Connecting-Hardware Keystone Jack, Tool-Free, Cable-Clamper Type, EC verified
Features
• High-Density design for 1U-24port keystone panel, extreme performance for Edge Data Center
• EC verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Quick and efficient installation by Cable-Clamper structure, Fool-Proofing and Pre-Lock design of IDC-cap
• Hi-Pot insulation performance improved by IDC’s Housing-Wall design
• 22-26AWG stranded and solid wires range
• T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified
180° STP Connecting-Hardware Keystone Jack, Tool-Free, Dust-Cap Type, EC verified
Features
• High-Density design for 1U-24port keystone panel, extreme performance design for Hyper-Scale and Edge Data Center
• EC verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Easy and Tool-Free in field termination, T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified
• IP20 by Dust-Cap design
180° STP Connecting-Hardware Keystone Jack, Tool-Free, EC verified
Features
• High-Density design for 1U-24port keystone panel, extreme performance for Edge Data Center
• EC verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Quick and efficient installation by Fool-Proofing and Pre-Lock design of IDC-Cap
• Hi-Pot insulation performance improved by IDC’s Housing-Wall design
• T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified
180° STP Connecting-Hardware Keystone Jack, Tool-Free, EC verified
Features
• High-Density design for 1U-24port keystone panel, extreme performance design for Hyper-Scale and Edge Data Center
• EC verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Easy and Tool-Free in field termination, T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified

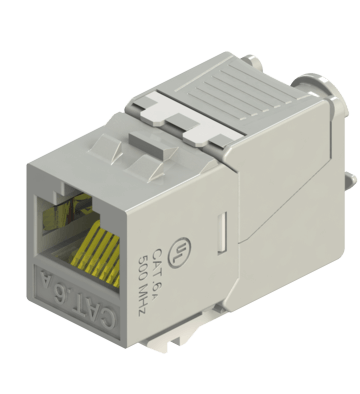

180° STP Connecting-Hardware Keystone Jack, Tool-Free, Slim Size, EC verified
Features
• High-Density design for 1U-48port keystone panel, extreme performance design for Hyper-Scale and Edge Data Center
• EC verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Easy and Tool-Free in field termination, T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified
180° STP Connecting-Hardware Keystone Jack, Dust Cap
Features
• High-Density design for 1U-24port keystone panel, extreme performance for Edge Data Center
• DELTA / FORCE Technology Verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Quick and efficient installation by Keystone Jack Termination tool, Feature-Proofing and Pre-Lock design of IDC-Cap
• Hi-Pot insulation performance improved by IDC’s wires protection design
• T568A & B wiring color printing on IDC-Cap
• Power over HDBaseT (PoH) applications up to 100 W
• UL 1863 verified
• IP20 performance by Dust-Cap design

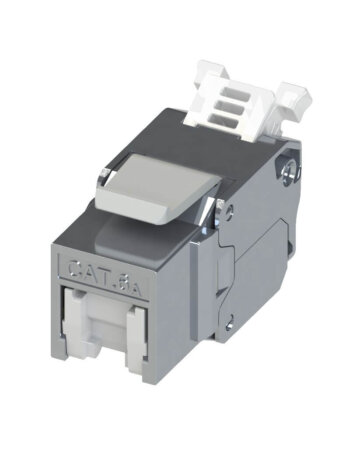

180° STP Connecting-Hardware Keystone Jack, Dust-Cap, Cable-Clamper
Features
• High-Density design for 1U-24port keystone panel, extreme performance for Edge Data Center
• DELTA / FORCE Technology Verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Quick and efficient installation by Patented Cable Clamper, Keystone Jack Termination tool, Feature-Proofing and Pre-Lock design of IDC-Cap
• Hi-Pot insulation performance improved by IDC’s wires protection design
• T568A & B wiring color printing on IDC-Cap
• Power over HDBaseT (PoH) applications up to 100 W
• UL 1863 verified
• IP20 performance by Dust-Cap design

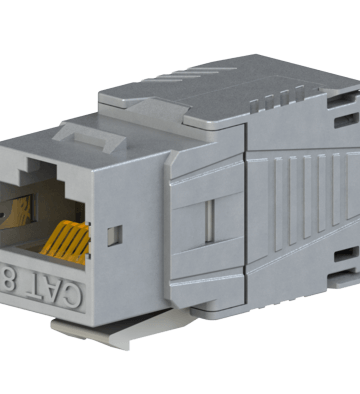

180° STP Keystone Jack, Tool-Free, GHMT and EC Verified
Features
• High-Density design for 1U-48port keystone panel, extreme performance design for Hyper-Scale and Edge Data Center
• GHMT verified ISO/IEC 11801-1 Class I 2000MHz for Cat.8 version
• The 4PPoE performance tested by GHMT
• Easy and Tool-Free in field termination, T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified

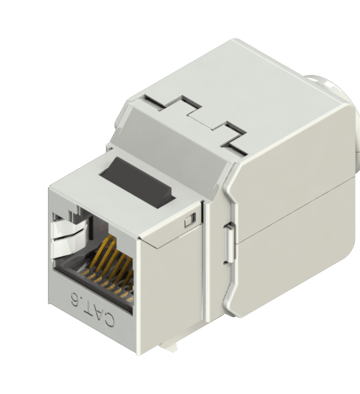

180° STP Permanent-Link Keystone Jack, Punch-Down
Features
• High-Density design for 1U-24port keystone panel
• High headroom on ANSI/TIA-568.2-D Channel and Permanent-Link including the 4PPoE performance
• T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified

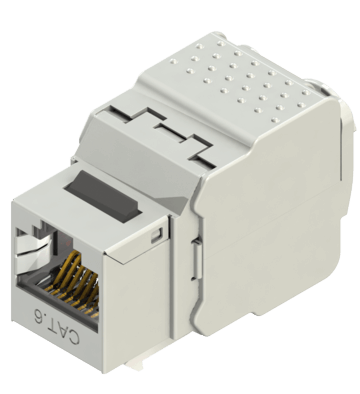

180° STP Permanent-Link Keystone Jack, Tool-Free
Features
• High-Density design for 1U-24port keystone panel
• High headroom on ANSI/TIA-568.2-D Channel and Permanent-Link including the 4PPoE performance
• Easy and Tool-Free in field termination, T568A & B wiring
• Power over HDBaseT (PoH) applications up to 100 watts
• UL 1863 verified
180° UTP Connecting-Hardware Keystone Jack
Features
• High-Density design for 1U-24port keystone panel, extreme performance for Edge Data Center
• ETL Verified ANSI/TIA-568.2-D Connecting-Hardware including the 4PPoE performance
• Power over HDBaseT (PoH) applications up to 100 W
• UL 1863 verified
