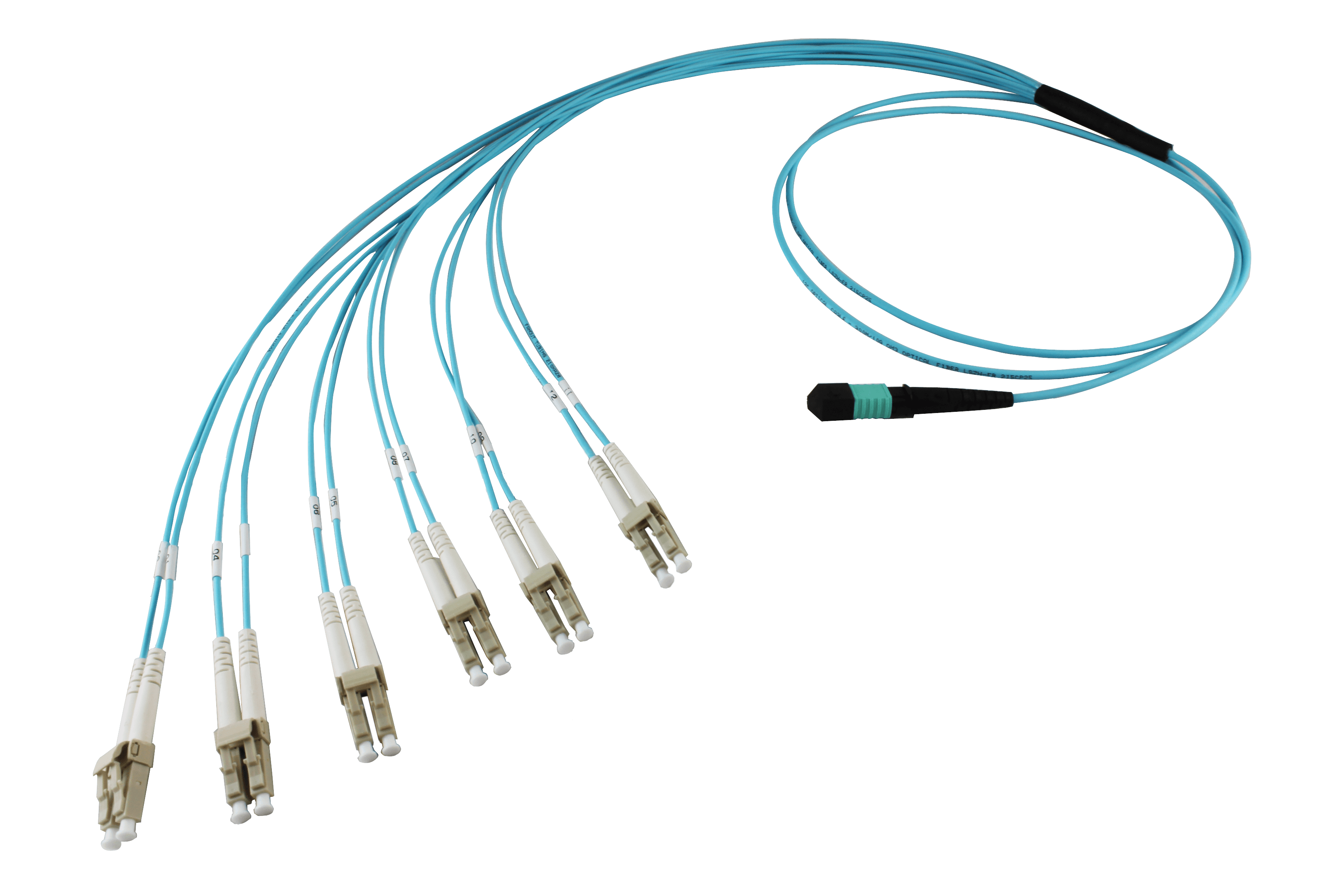

MPO-12 to LC Harness

The MTP^® / MPO to LC harness series is for transition from trunk backbone assemblies to fiber rack system. As terminated with MTP^® / MPO connector on one end and LC connectors on another end.

Description
Application

Description

8C MTP^® / MPO to LC is for transition from 4x100G BIDI to 1x400G BIDI.

• Optimized for 400G BIDI to 4x100G BIDI direct connection.
• Options with MM OM3, OM4, OM5 bend insensitive fiber and SM G657A1, G657A2
• 100% Factory terminated and tested to ensure quality
• Following specification are available –

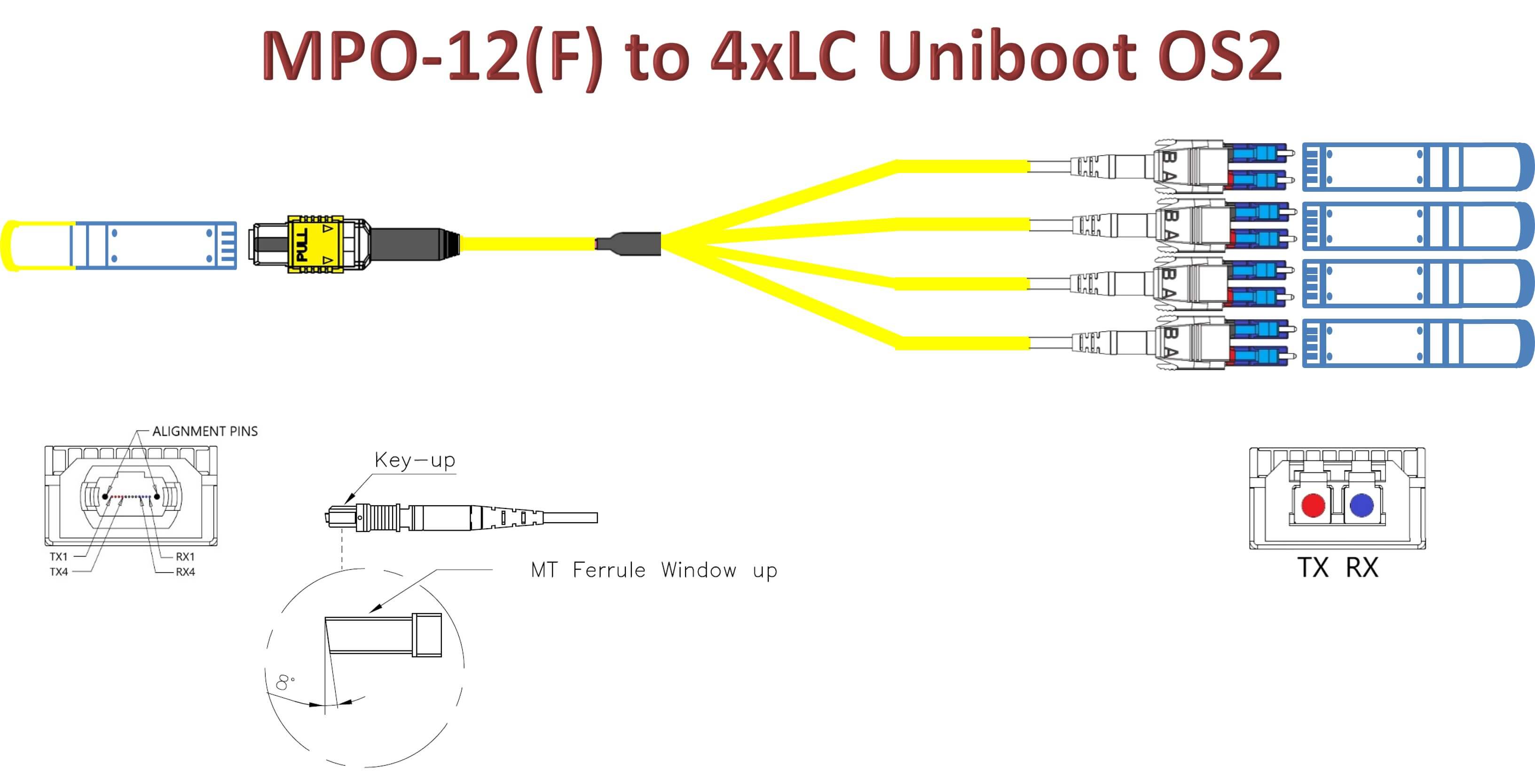

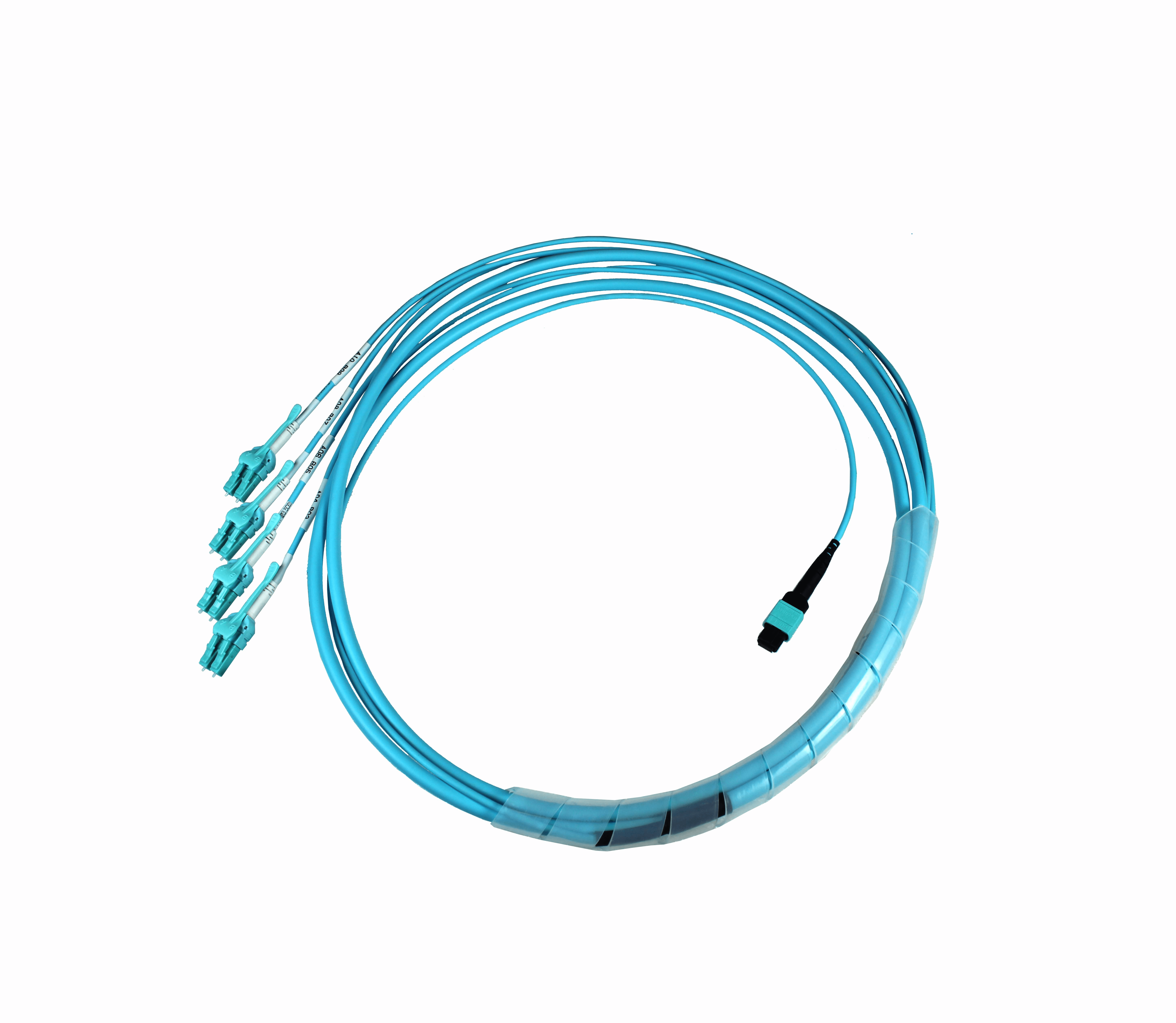

– 1x MTP^® / MPO-12 to 4xLC Duplex/Uniboot/Extractor
