Description

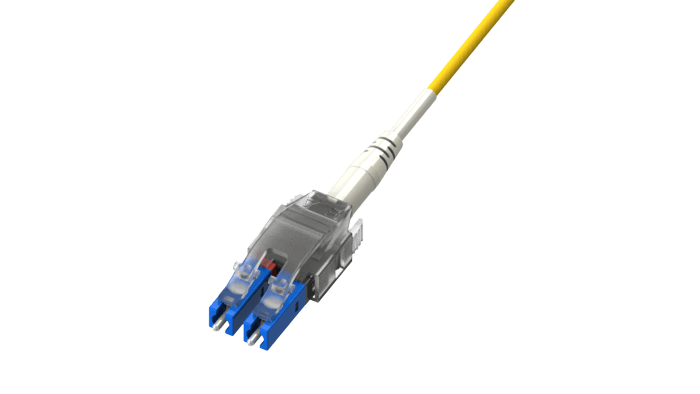

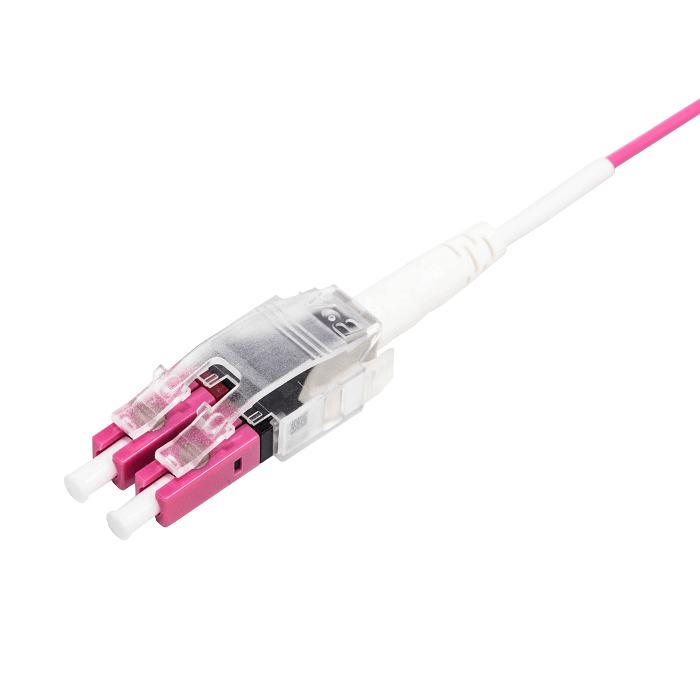

LC uniboot series is an integrated reverse-polarity uniboot duplex assembly that completely answers high-density requirements of the MDA and EDA. Compared with traditional duplex LC jumpers, the uniboot series provides efficiently a 50-percent reduction in bulk cabling, including the improvement of cable management, air circulation and routing.
Incorporated with dualan cable, uniboot exclusively maximizes valuable space. The user regains control of the infrastructure rather than living with an unmanageable build-up of patch cords.
• Patented design, changing LC polarity in 1 second without twisting of the fiber
• Particular Red/Black housing design, clear identification with polarity A-A and A-B
• Ultra Low Loss LC ferrule, IEC 61753-1 random mating IL (Insertion Loss) Grade B
• 1.6mm cable O.D. improve airflow, routing and maximize valuable space
• Compared with traditional zip-cord cable, round duplex cable reduces the number of cables in half and optimizes space by 68%
• Simplifies cable management, Reduces weight and lower carriage costs
• Options with MM OM3, OM4, OM5 bend-insensitive fiber and SM OS2 G657A fiber
• 100% Factory terminated and tested to ensure quality
BIMMF OM3/OM4/OM5 | OS2 G.657.A |
|||
|---|---|---|---|---|
| Standard Loss | Low Loss | Standard Loss | Low Loss | |
| Insertion Loss | < 0.3 dB | < 0.15 dB | < 0.2 dB | < 0.15 dB |
| Return Loss | > 35 dB | > 35 dB | UPC > 55 dB APC > 60 dB | UPC > 55 dB APC > 60 dB |
