Description

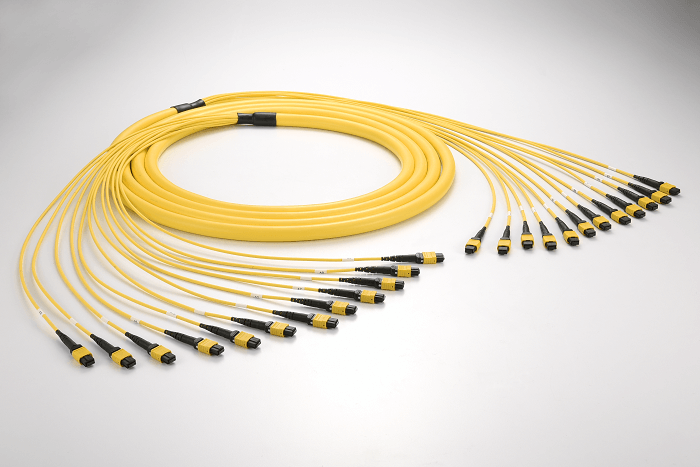

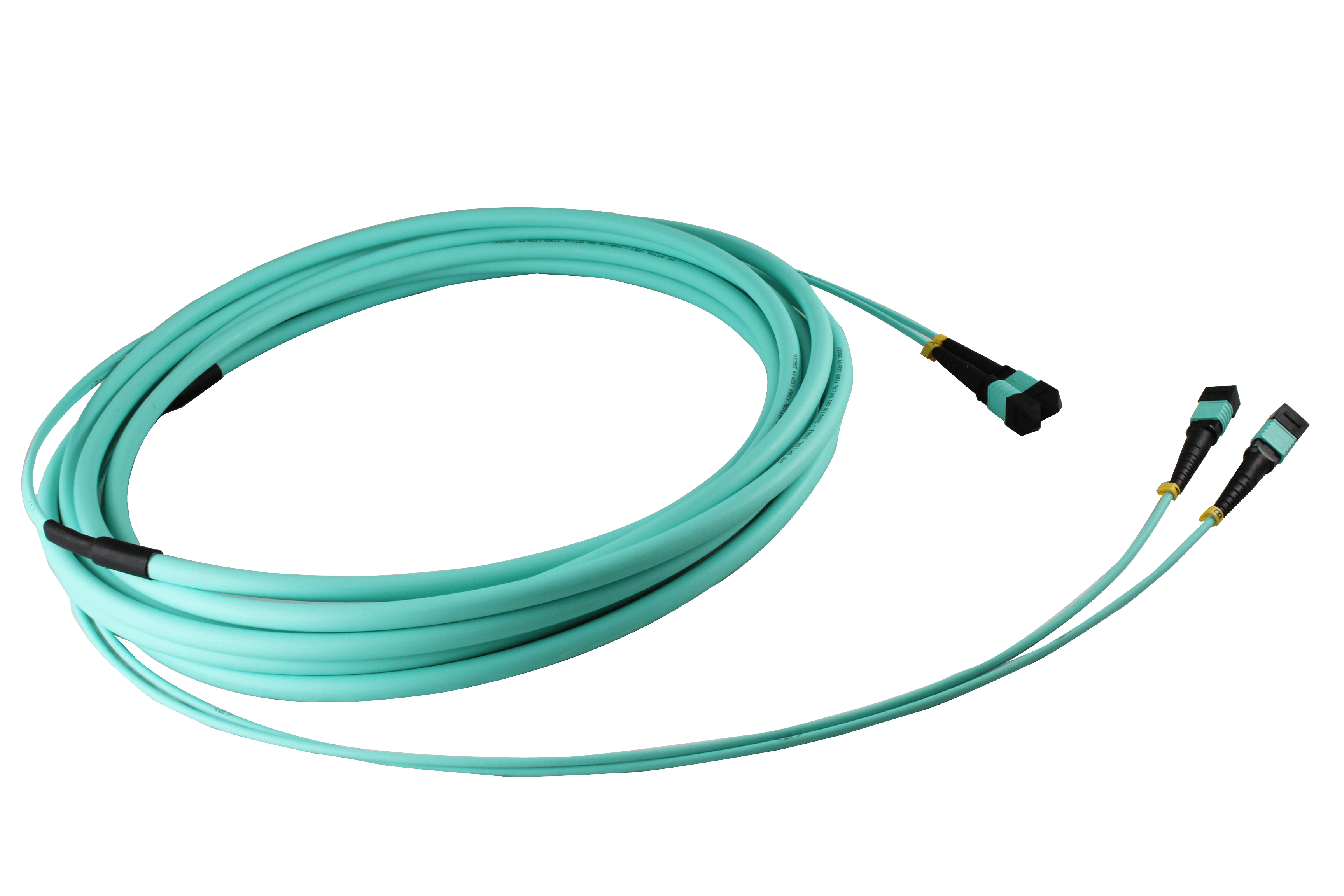

MTP® / MPO double-jacketed backbone cable has a more robust dual jacket sheath, providing higher compressive strength. These cables are usually designed for longer cable lengths between cabinets applications or connect different building areas and have pulling eyed options to aid installation.

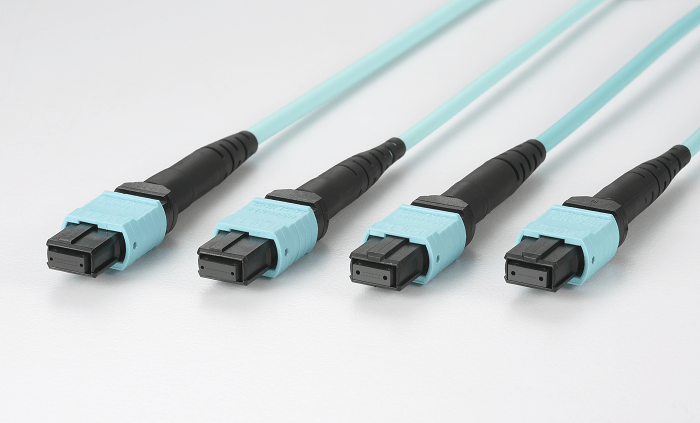

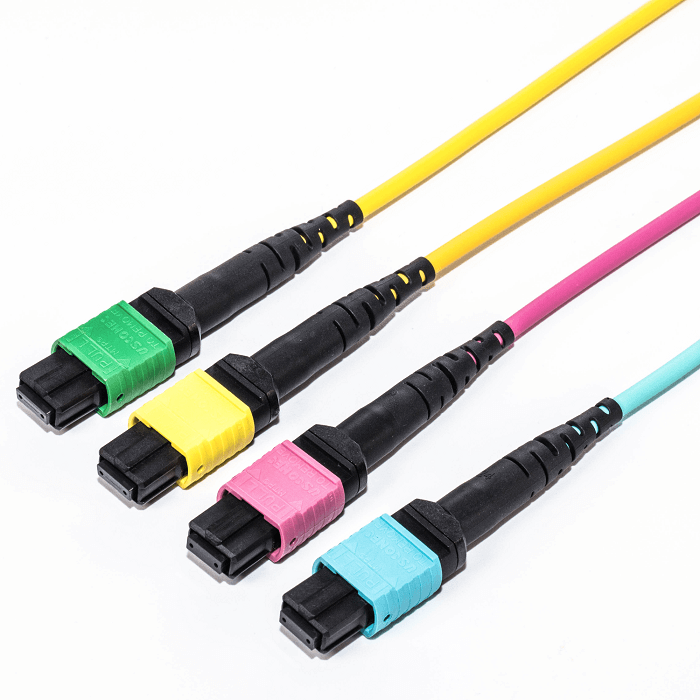

• MTP® and MPO are available
• Fiber counts from 8, 12, 24, 36 cores…..up to 144 cores are available
• Support polarity method A, B, C and customized polarity methods; option for male or female
• Options with multimode OM3, OM4, OM5 bend-insensitive fiber and single-mode OS2 G.657.A fiber
• Parallel optic transmission 40G / 100G / 400G Ethernet
• “Plug and Play” solution eliminates in-filed termination, reduces installation cost and time
• 100% Factory terminated and tested to ensure superior performance and quality
• Transmission performance:
BIMMF OM3/OM4/OM5 | OS2 G.657.A |
||||
|---|---|---|---|---|---|
| Standard Loss | Low Loss | Standard Loss | Low Loss | Ultra Low Loss | |
| Insertion Loss | < 0.50 dB | < 0.35 dB | < 0.75 dB | < 0.35 dB | < 0.25 dB |
| Return Loss | > 20 dB | > 25 dB | > 60 dB | > 60 dB | > 60 dB |
For more information, please refer to MTP® Array Cable
