MPO Conversion Cable – 12Fiber

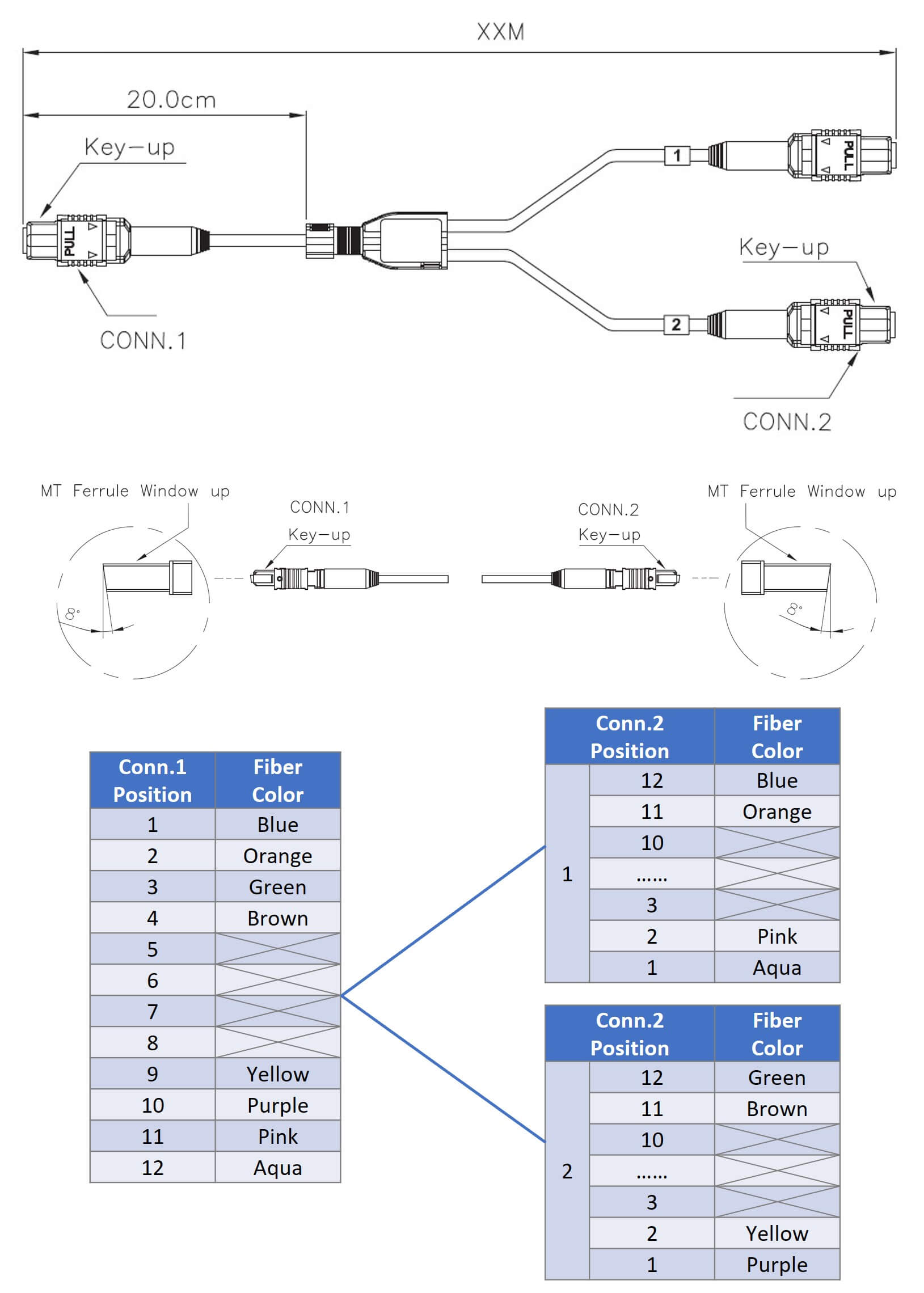

This series features a 4-channel-to-two 2-channel MPO splitter fiber cable utilizing 8 active fibers for light transmission. The MTP® / MPO-12 green and yellow connector with APC polish, deflects optical back reflections, ensuring signal quality.

Description

• Parallel optic transmission 200G / 400G Ethernet
• Options with multimode OM3, OM4, OM5 bend-insensitive fiber and single-mode OS2 G.657.A fiber
• 100% Factory terminated and tested to ensure superior performance and quality

Application

400G VR4/SR4 to 2x200G VR2/SR2 Direct Connection

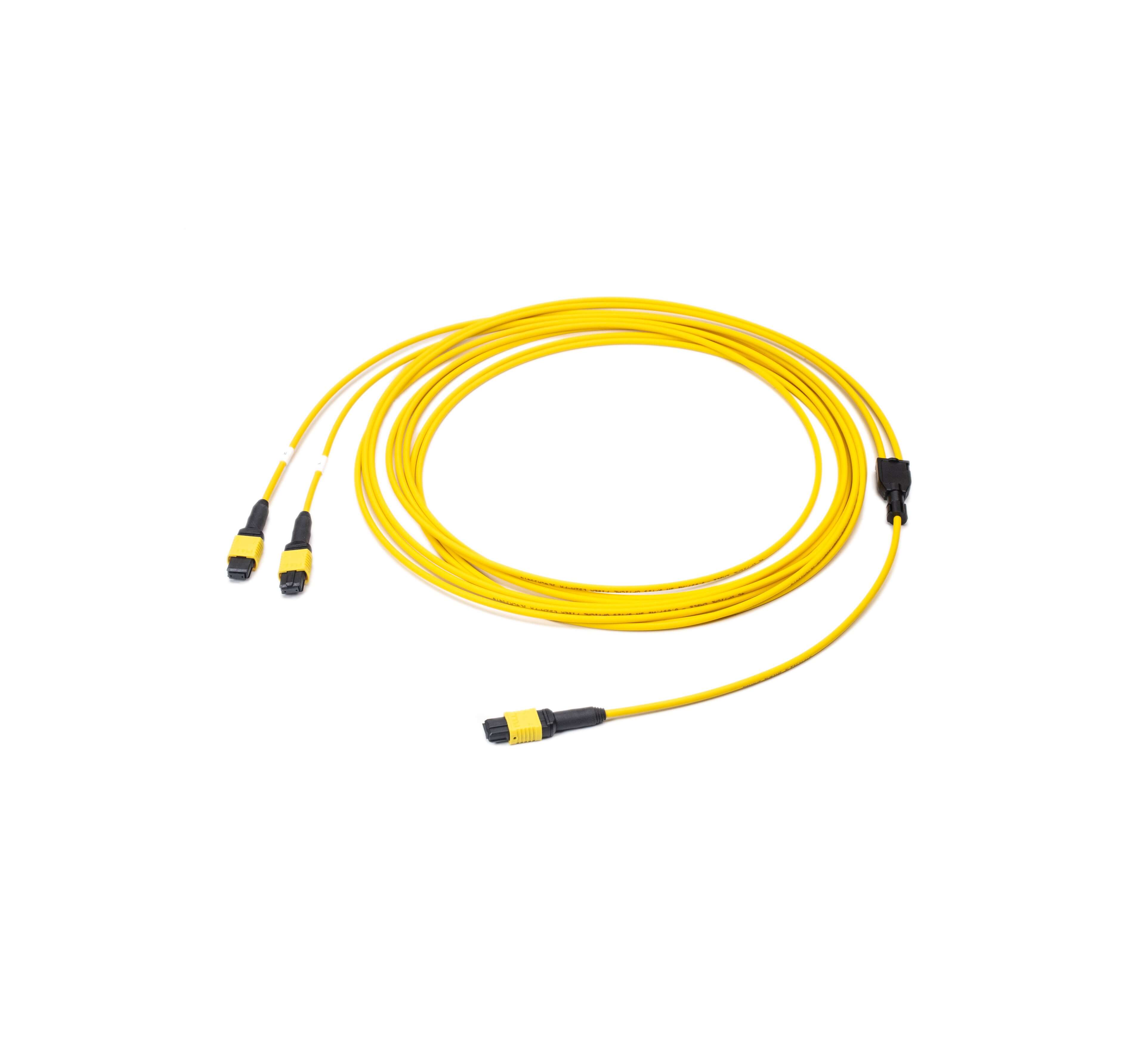

MPO SM APC

MPO SM/APC Specification

MPO SM/APC Specification
Connector AMPO female (without Pin)
Connector BMPO female (without Pin)
Fiber typeOS2 G.657A 9/125um
Wavelength1310/1550nm
Ethernet Distance◆ 400G : 100Mtr. at 1310nm
◆ 800G : 50Mtr. at 1310nm
Polish Type8° APC (Angle Polished)
Insertion Loss◆ Standard Loss < 0.75dB
◆ Low Loss < 0.35dB
◆ Ultra Low Loss < 0.25dB
Return Loss> 60dB
Cable JacketLSFRZH/OFNP
Attenuation ◆ <0.35dB/km at 1310nm
◆ <0.21dB/km at 1550nm
Cable Diameter3mm
Min. Bend Radius7.5mm
Tensile Load - Installation66N
Tensile Strength◆ Long Term : 200N
◆ Short Term : 300N
Operating Temperature-20C to +70C
Storage Temperature-40C to +80C
RoHS ComplianceCompliant

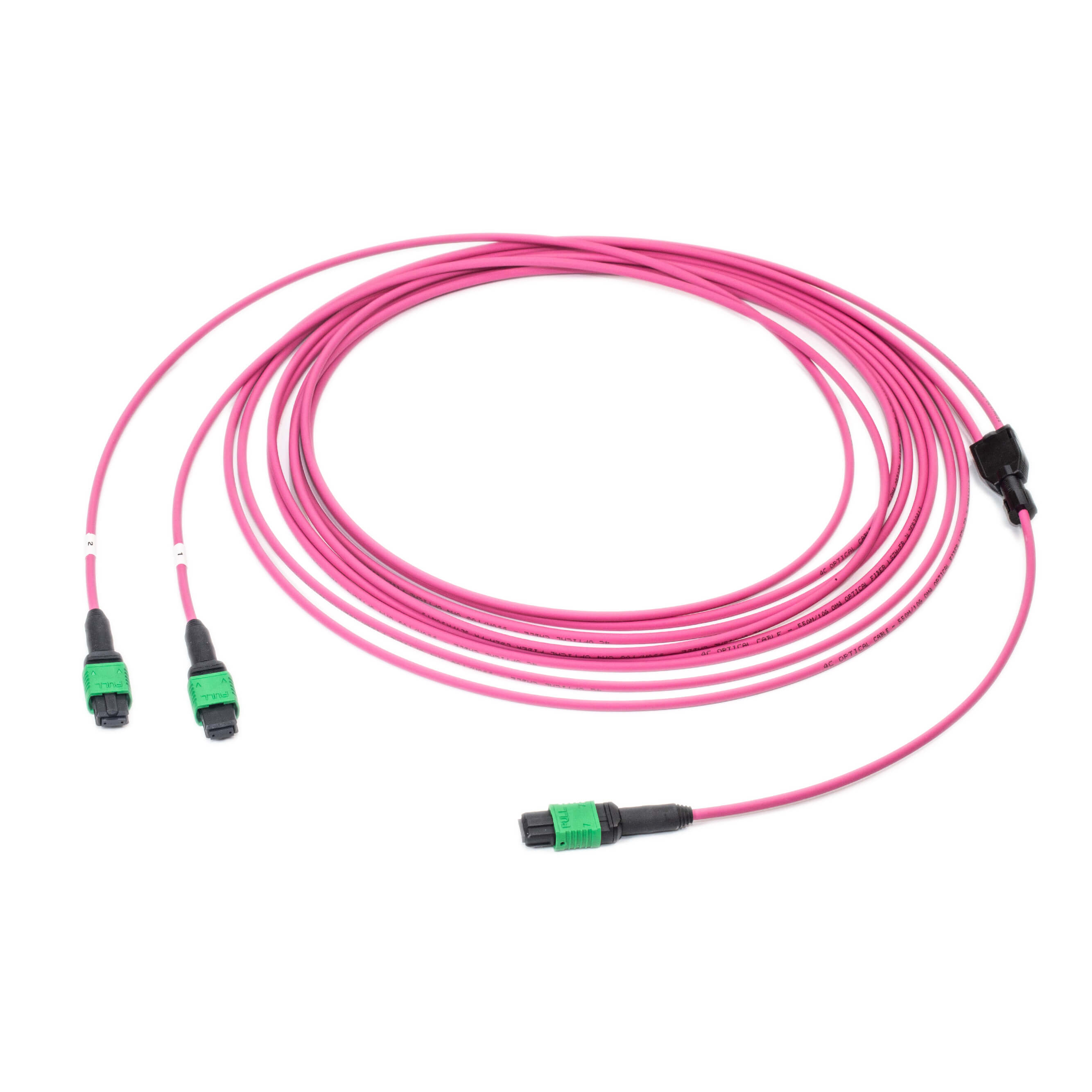

MPO MM APC

MPO MM/APC Specification

MPO MM/APC Specification
Connector AMPO female (without Pin)
Connector BMPO female (without Pin)
Fiber typeOM4 50/125um
Wavelength850/1300nm
Ethernet Distance◆ 400G : 100Mtr. at 850nm
◆ 800G : 50Mtr. at 850nm
Polish Type8° APC (Angle Polished)
Insertion Loss◆ Standard Loss < 0.50dB
◆ Low Loss < 0.35dB
◆ Ultra Low Loss < 0.25dB
Return Loss> 45dB
Cable JacketLSFRZH/OFNP
Attenuation ◆ <2.4dB/km at 850nm
◆ <0.6dB/km at 1300nm
Cable Diameter3mm
Min. Bend Radius7.5mm
Tensile Load - Installation66N
Tensile Strength◆ Long Term : 200N
◆ Short Term : 300N
Operating Temperature-20C to +70C
Storage Temperature-40C to +80C
RoHS ComplianceCompliant
