Description

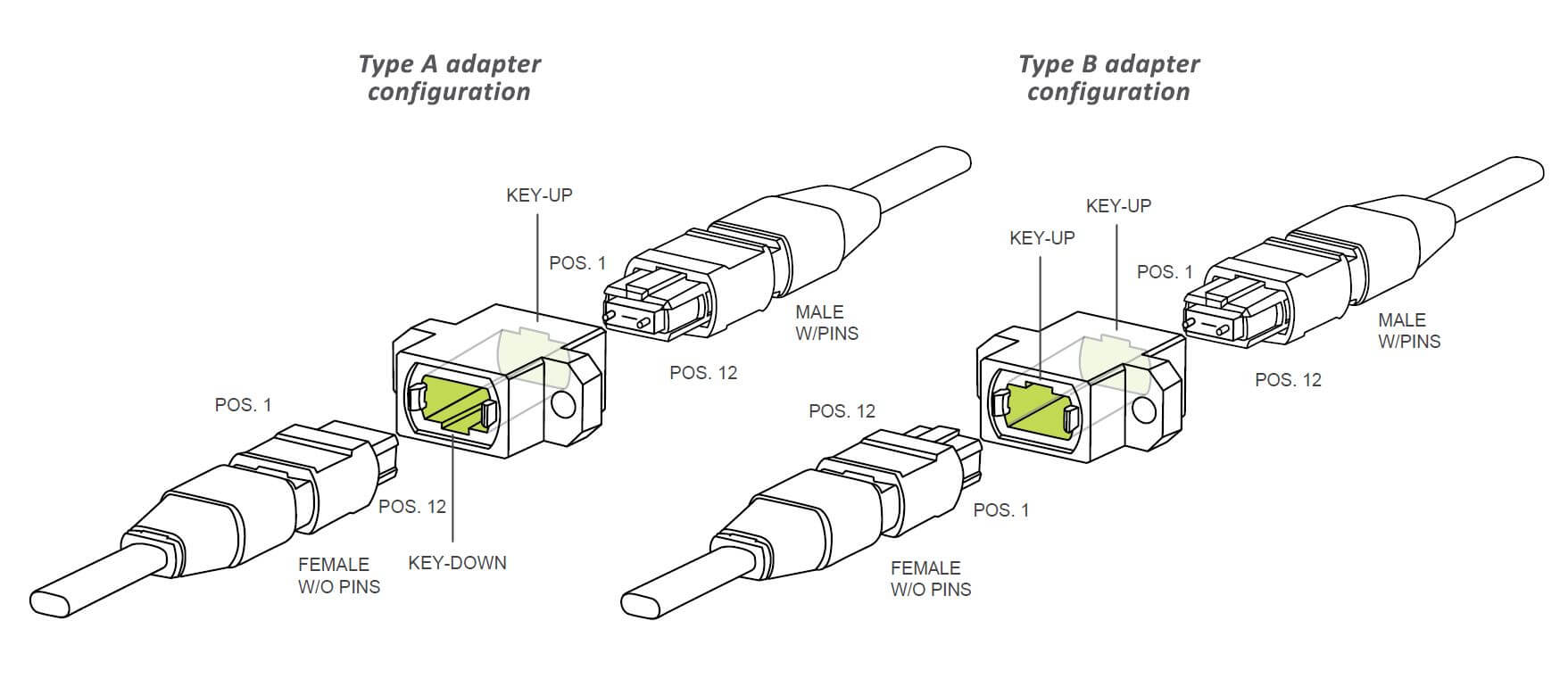

There are two types of MTP®/MPO adapters, according to the placement of the key:
Type A Opposed-key: Key-up to Key-down, the key is up on one side, and the other is down. The two connectors are connected turned 180°.
Type B Aligned-key: Key-up to Key-up, the key is up at both sides Aligned-key adapters are light gray color.
When making an MTP®/MPO connection, use one male connector and female connector plus one MTP®/MPO adapter. MTP®/MPO connector with guide pin is called male. Don’t connect a male to a male; otherwise, the guide pin will hit against the pin and damage the connector.
• The housing is available with standard size or SC footprint type

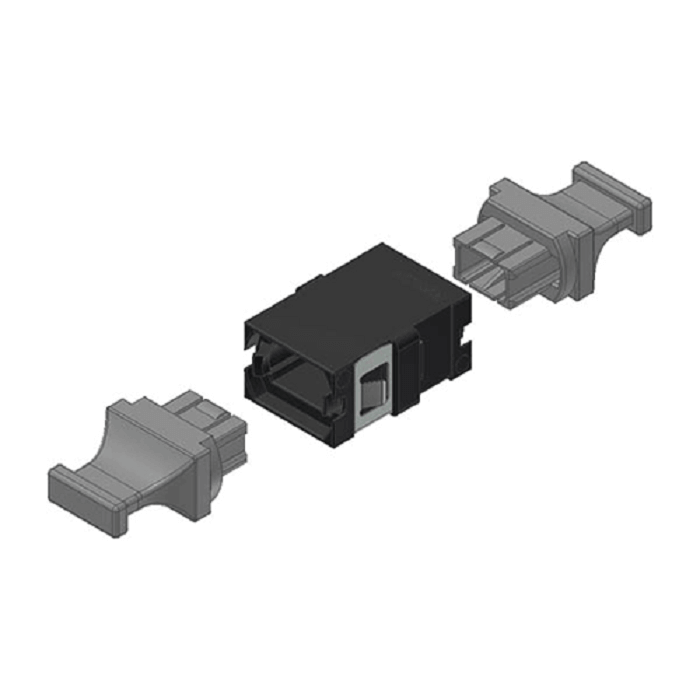

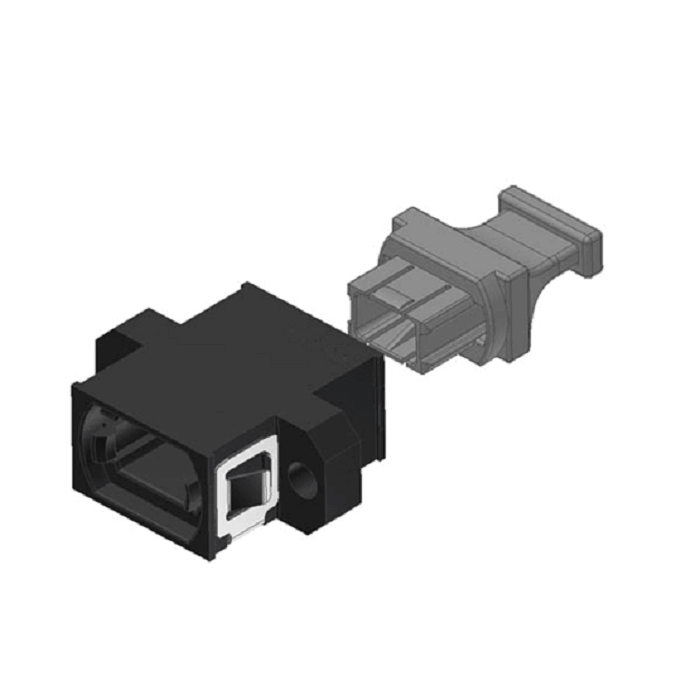

• The adapter options for flange or flangeless body
