800G Multi-mode Application

Nowadays hyperscale data centers are striving to 800G even beyond configuration. The optic fiber interconnection cablings act the nerves in the core-spine-leaf infrastructure. Jyh Eng offers the premium optic fiber cabling solution to bolster interconnection deployments.

Description

Description

800G Ethernet enable data centers and high-performance computing (HPC) environments to meet escalating demands for higher bandwidth, 800G is most efficient platform to work with several key factors:
1. Data Growth
2. Cloud Computing
3. High-Performance Computing
4. Data Center Efficiency
5. Next-Generation Applications
6. Network Scalability

800G Multimode Application

Applications	IEEE Reference	Wavelength (nm)	Interface	Lane Rate	Max. Distance
800GBase-VR8	802.3df 2024	850	MPO-16 MM/APC	100G	OM4 : 50 meter OM5 : 50 meter
800GBase-SR8	802.3df 2024	850	MPO-16 MM/APC	100G	OM4 : 100 meter OM5 : 100 meter

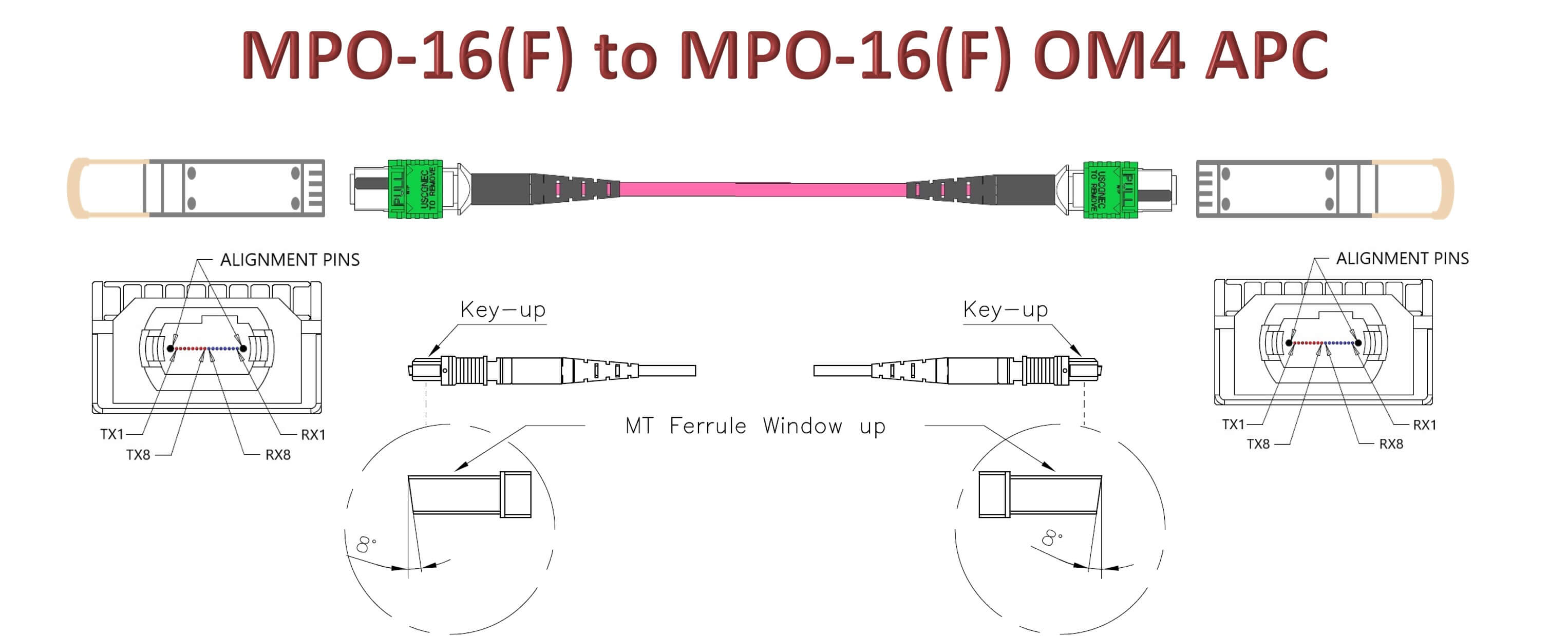

800G SR8 Direct Connection

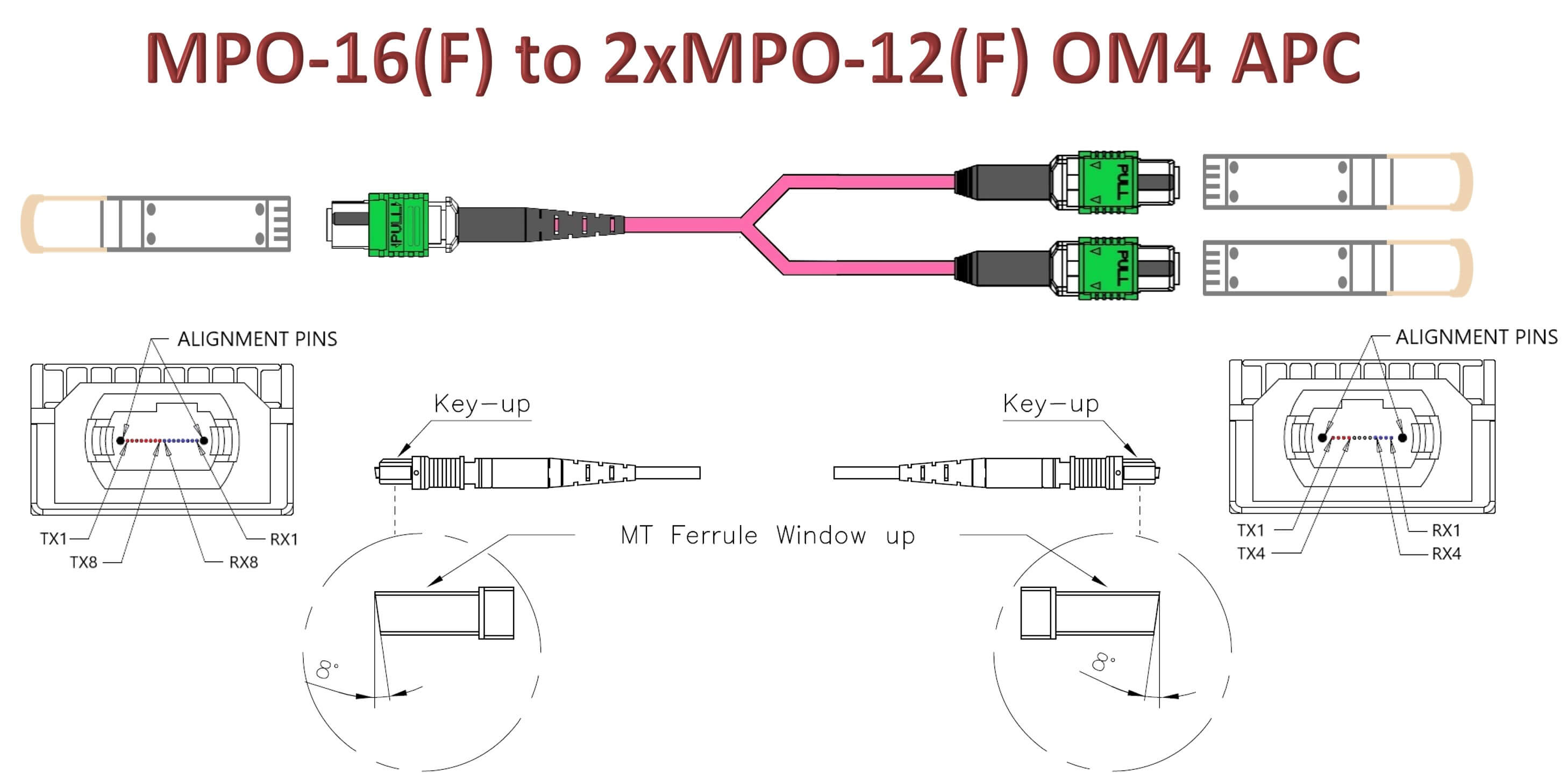

800G SR8 to 2x 400G SR4 Direct Connection

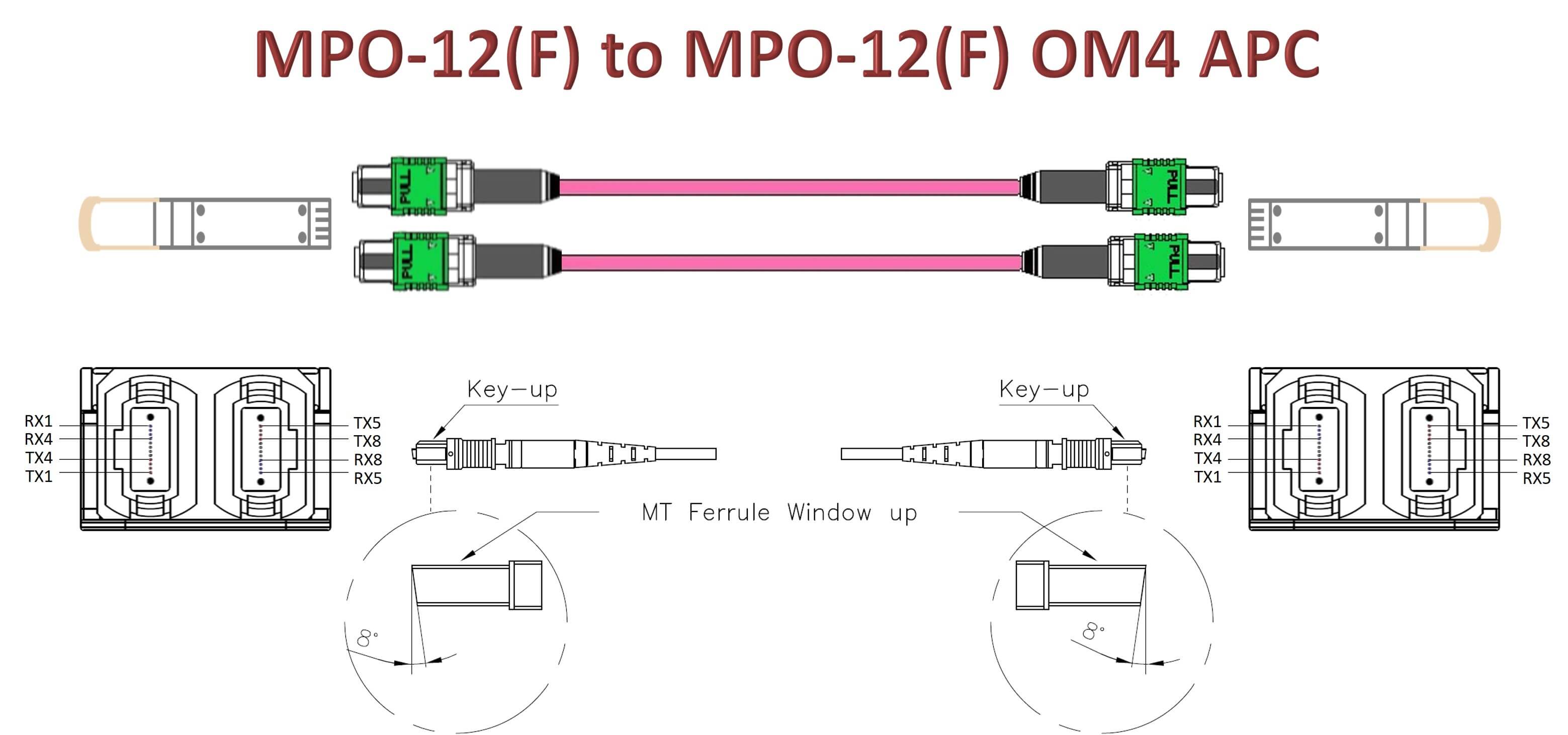

800G Dual Port SR8 Direct Connection

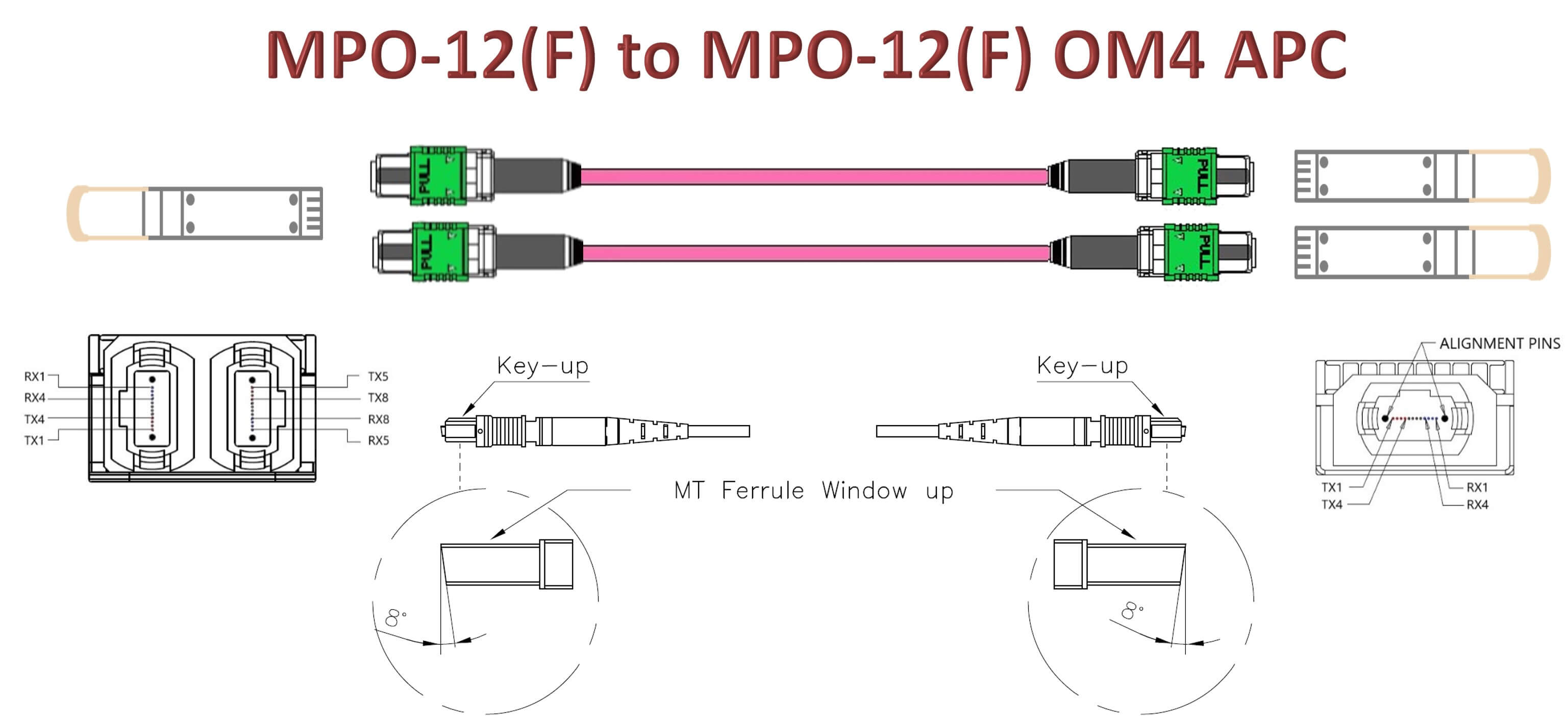

800G Dual Port SR8 to 2x400G SR4 Direct Connection
