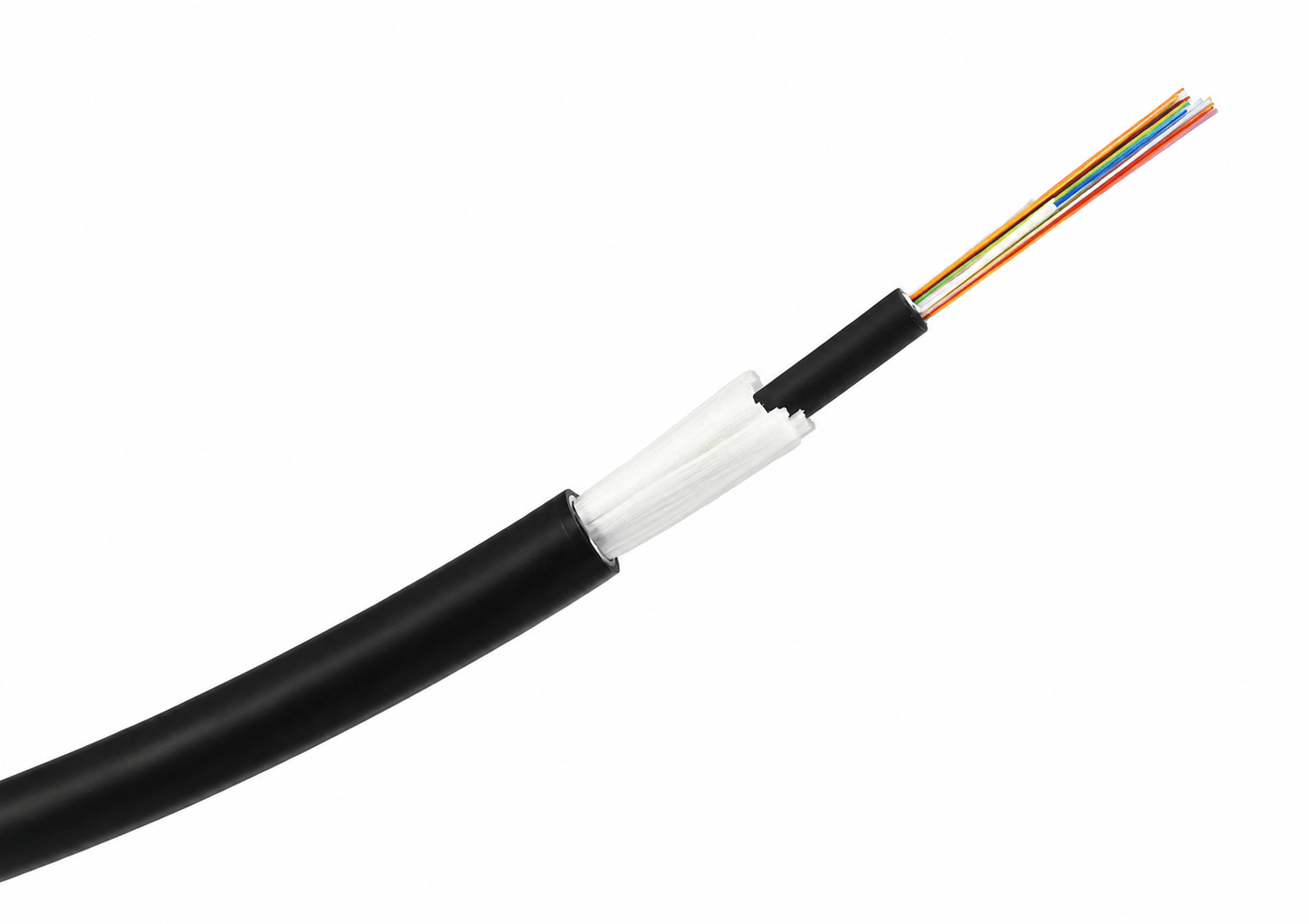

Description
These rugged and flexible fiber cables provide reliable protection against moisture, temperature fluctuations, UV exposure, and rodents. Glass yarn reinforcement ensures flexibility and excellent rodent resistance, while water-blocking yarn helps prevent moisture penetration. CPR Class B2ca – s1, d1, a1 level.
Key Features
• Indoor/Outdoor FTTH use
• Flexible glass yarn reinforcement
• Excellent rodent resistance
• Water-blocking protection
• UV resistant
• CPR Class B2ca – s1, d1, a1 Equivalent Level
Cable Type

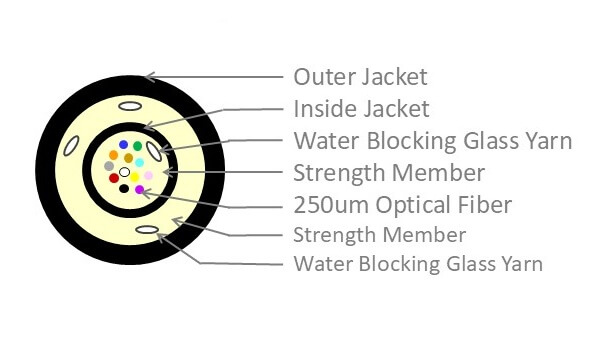

• 4C/8C/12C/24C Indoor/Outdoor Water-Blocked Cable with 250um Colored Optical Fiber, UV Resistance
• Jacket Material: LSFRZH
• Cable Color: Black
• Cable O.D.: 6.5mm
Standard Compliance
√ IEC 60794-2-20 Indoor cables – Family specification for multi-fiber optical cables
√ IEC 60794-1-2 Basic optical cable test procedures
√ IEC 60332-1-2 Test for vertical flame propagation for a single insulated wire or cable
√ IEC 60754-1 Determination of the halogen acid gas content
√ IEC 60754-2 Determination of acidity (by pH measurement) and conductivity
√ IEC 61034-2 Measurement of smoke density of cables burning under defined conditions
