Description

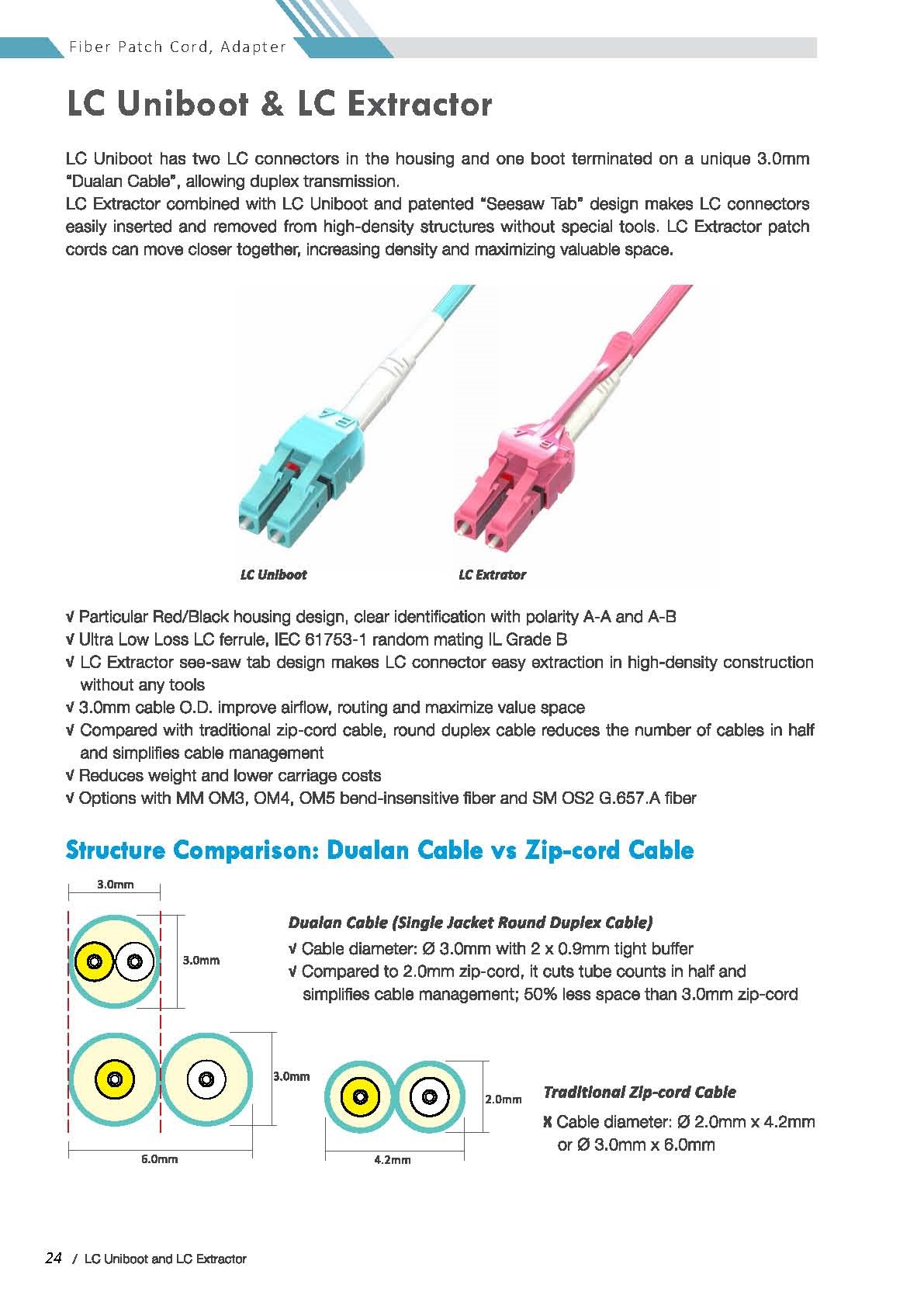

• Seesaw tab design makes LC connector easy extraction in high-density construction
• Extractor LC is a polarity switchable design: A-red and B-black color indications for polarity check
• Flexible micro cables improve cable management, air circulation, routing and maximize valuable space, and reduce weight and carriage costs
• Extractor LC tube O.D. = 3.0mm
• Extractor LC with half tube count is easy for cable management, high density data center applications and blade services

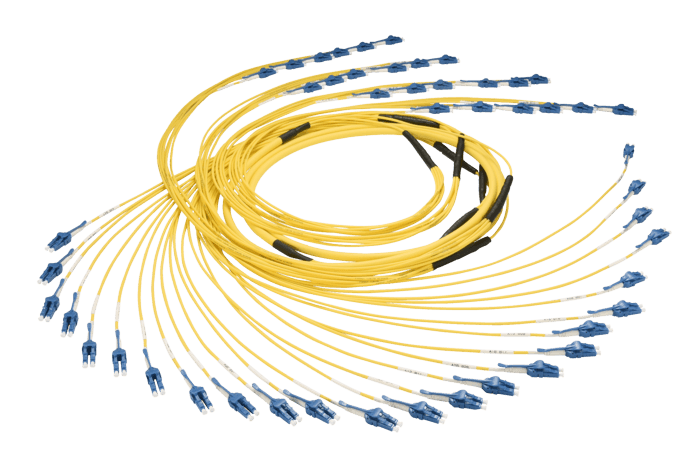

• Fiber counts from 2, 8, 12, 24, 36 cores…..up to 144 cores are available

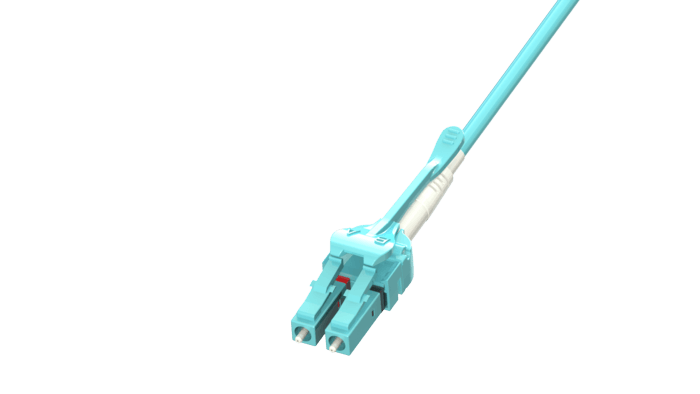

• Options with MM OM3, OM4, OM5 bend-insensitive fiber and SM OS2 G657A fiber
• Breakout tube length up to 250cm
• 100% Factory terminated and tested to ensure quality
BIMMF OM3/OM4/OM5 | OS2 G.657.A |
|||
|---|---|---|---|---|
| Standard Loss | Low Loss | Standard Loss | Low Loss | |
| Insertion Loss | < 0.3 dB | < 0.15 dB | < 0.2 dB | < 0.15 dB |
| Return Loss | > 35 dB | > 35 dB | UPC > 55 dB APC > 60 dB | UPC > 55 dB APC > 60 dB |

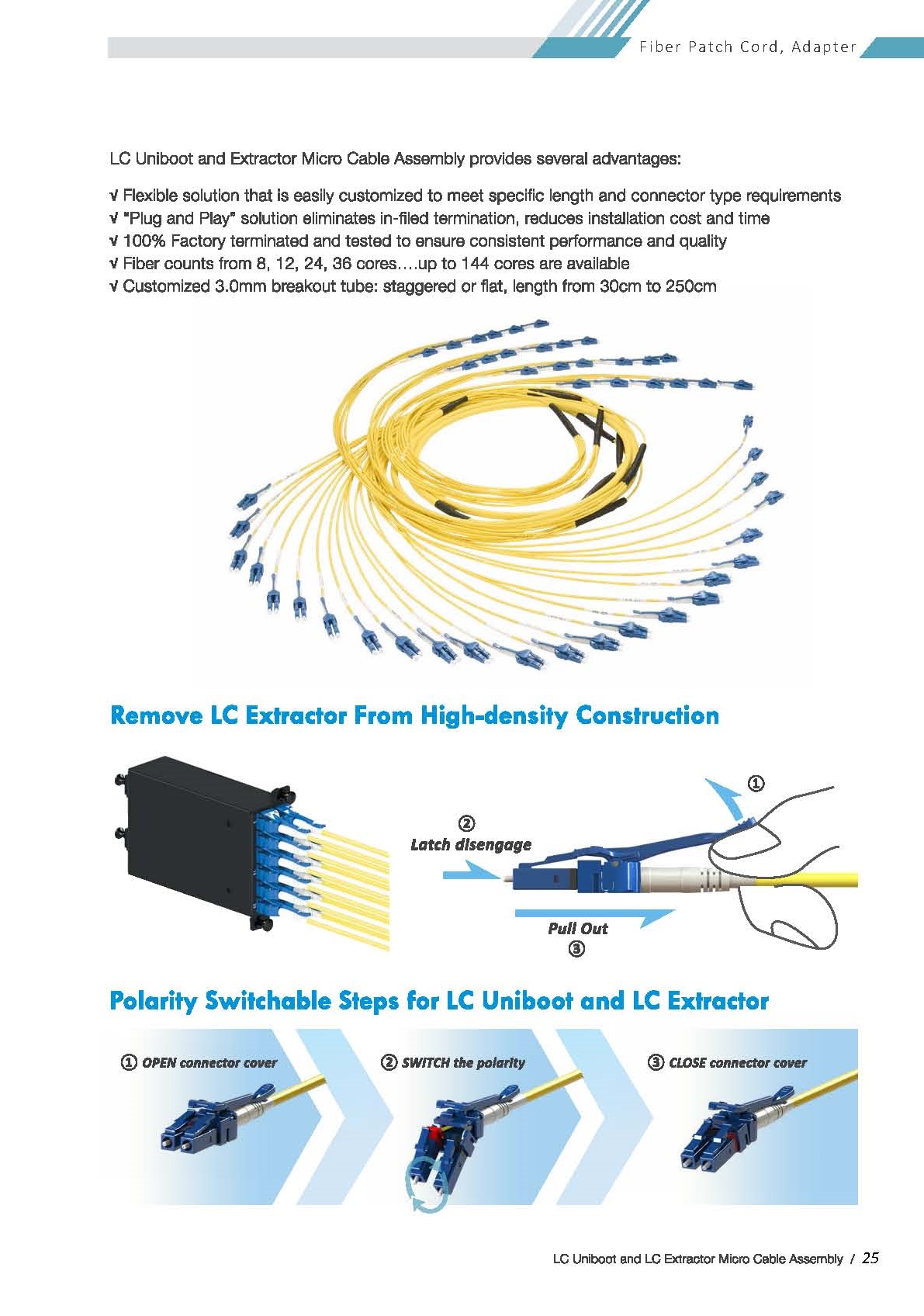

Polarity Switchable Steps

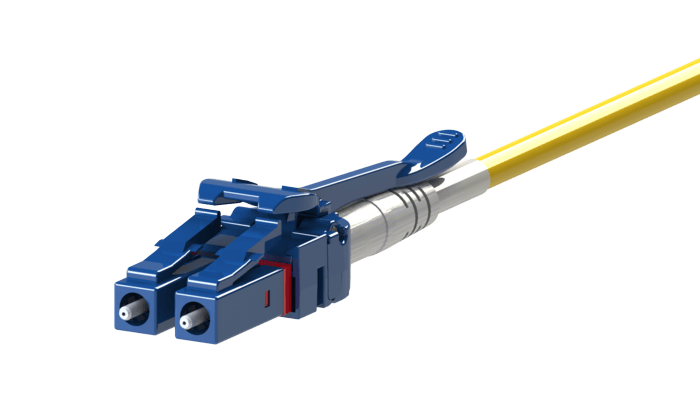

1. OPEN connector cover

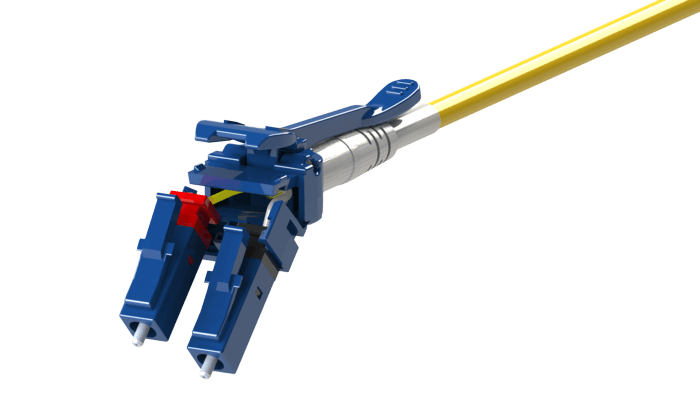

2. SWITCH the polarity

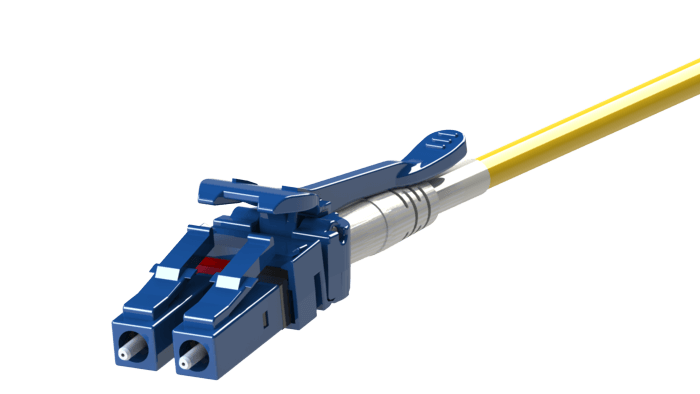

3. CLOSE connector cover
