Description
• LC uni-boot is a polarity switchable design; A-red and B-black color indication for polarity checks
• Flexible micro cables improve cable management, air circulation, routing and maximize valuable space, and reduce weight and carriage costs
• LC uni-boot tube O.D. = 3.0mm
• LC uni-boot with half tube count is easy for cable management, high density data center applications and blade services

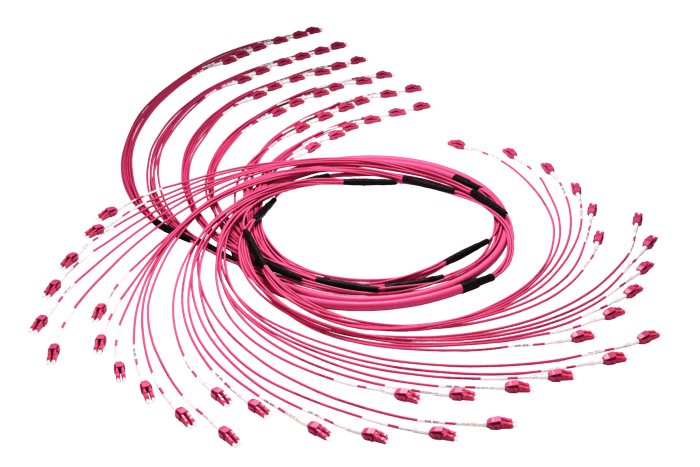

• Fiber counts from 8, 12, 16, 24 up to 144 are available
• Length of the breakout tube from 15 cm to 2.5 M. The most common length is 0.61 M (2 FT)
• Options with MM OM3, OM4, OM5 bend insensitive fiber and SM G.657.A
• 100% Factory terminated and tested to ensure quality
BIMMF OM3/OM4/OM5 | OS2 G.657.A |
|||
|---|---|---|---|---|
| Standard Loss | Low Loss | Standard Loss | Low Loss | |
| Insertion Loss | < 0.3 dB | < 0.15 dB | < 0.2 dB | < 0.15 dB |
| Return Loss | > 35 dB | > 35 dB | UPC > 55 dB APC > 60 dB | UPC > 55 dB APC > 60 dB |
Polarity Switchable Steps

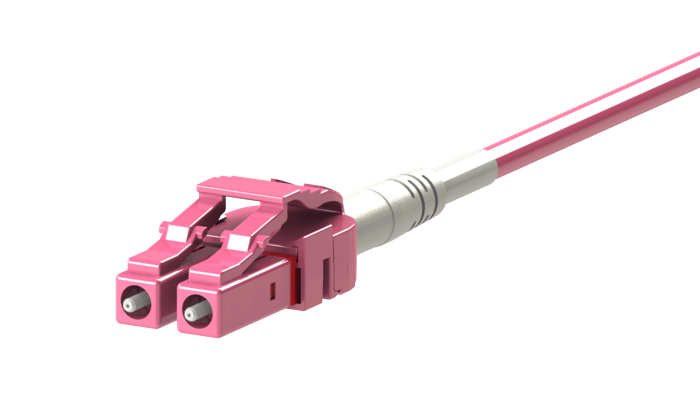

1. OPEN connector cover

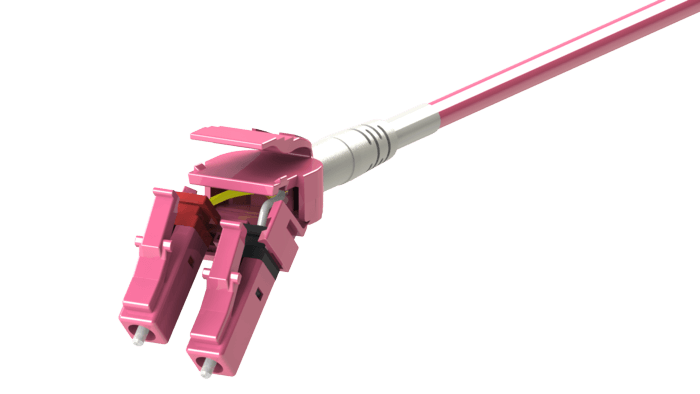

2. SWITCH the polarity

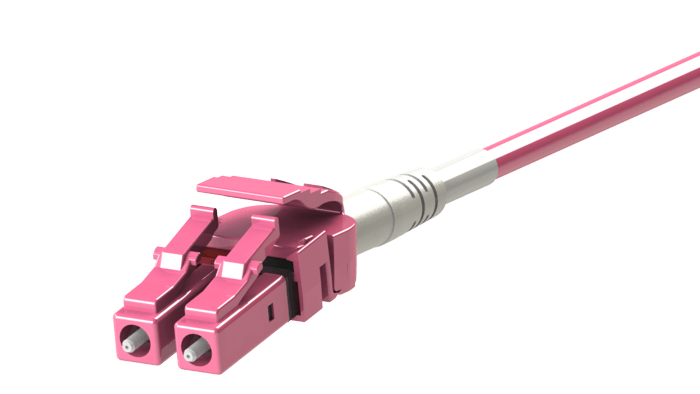

3. CLOSE connector cover
