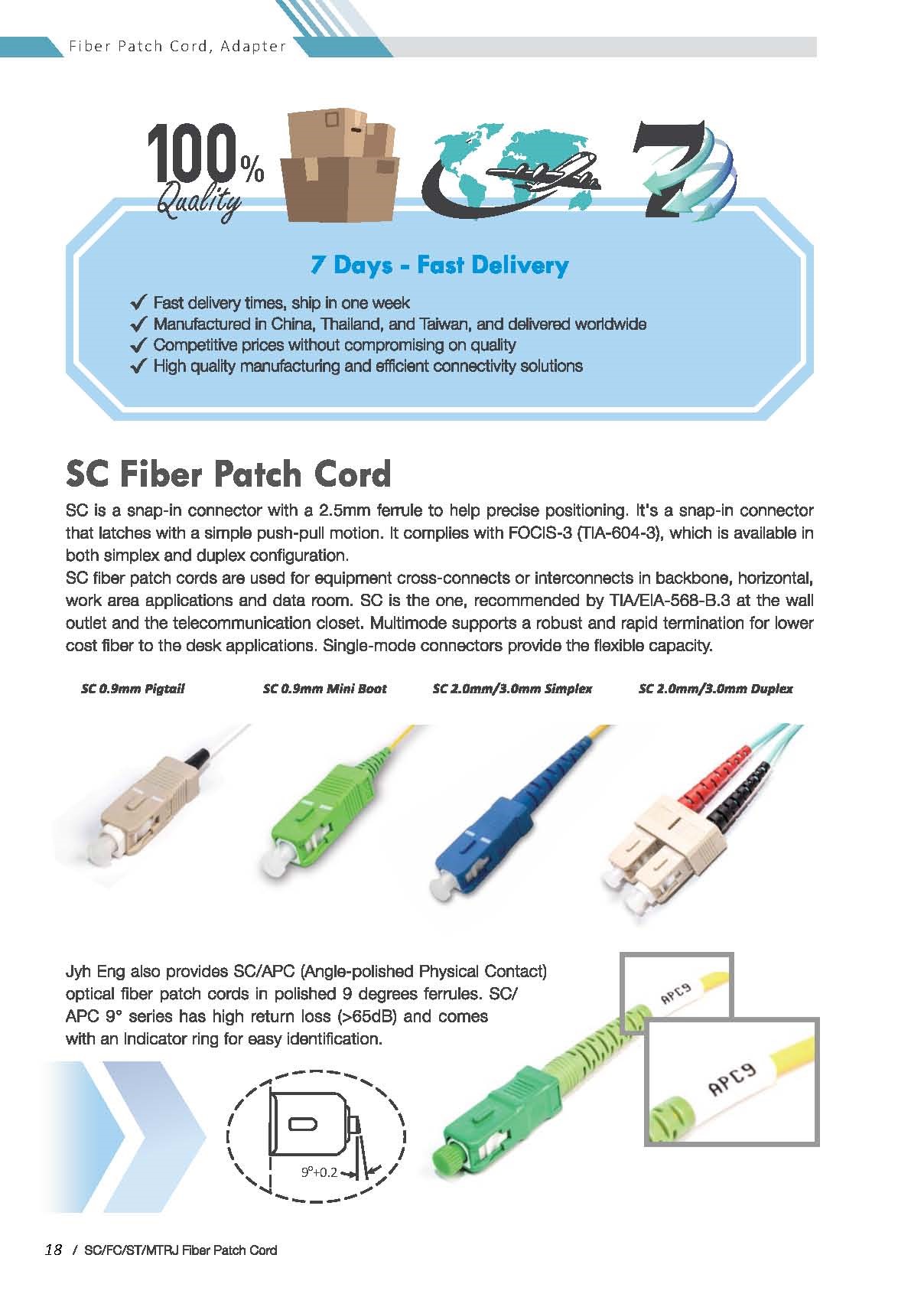

Description

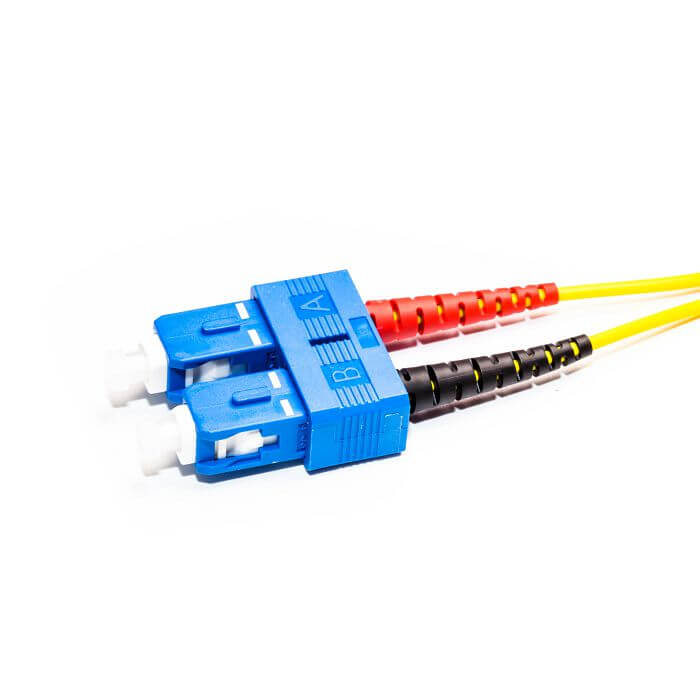

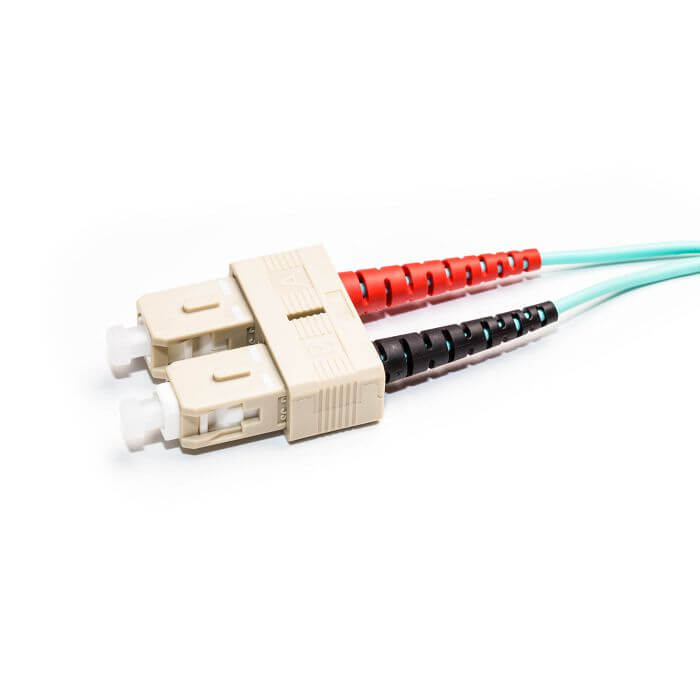

SC is a snap-in connector with a 2.5 mm ferrule to help precise positioning. It’s a snap-in connector that latches with a simple push-pull motion. It complies with FOCIS-3 (TIA-604-3), which is available in both simplex and duplex configuration.

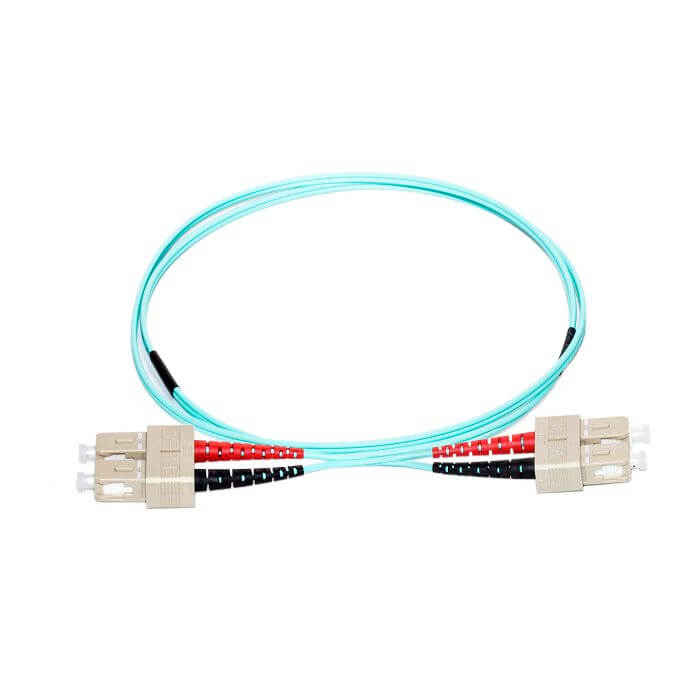

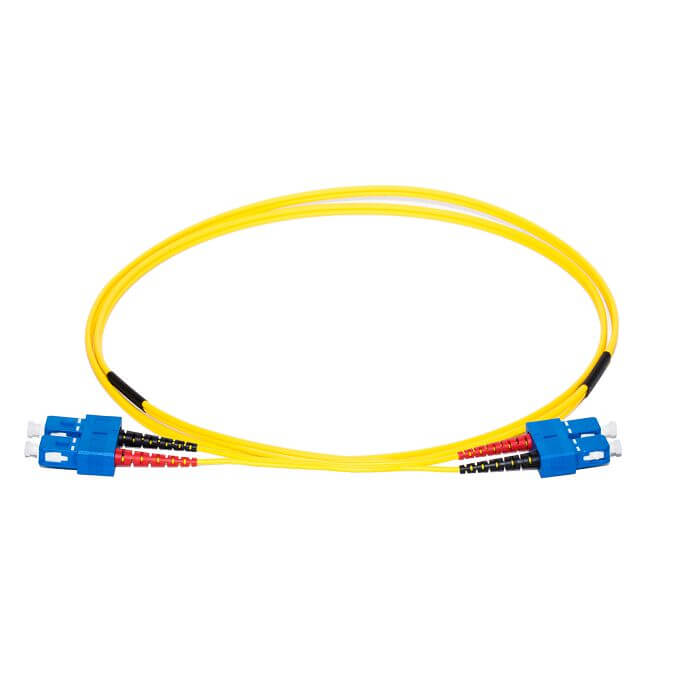

SC fiber patch cords are used for equipment cross-connects or interconnects in backbone, horizontal, work area applications and data room. SC is the one, recommended by TIA/EIA-568-B.3 at the wall outlet and the telecommunication closet. Multimode supports a robust and rapid termination for lower cost fiber to the desk applications. Single-mode connectors provide the flexible capacity.
BIMMF OM3/OM4/OM5 | OS2 G.657.A |
|||
|---|---|---|---|---|
| Standard Loss | Low Loss | Standard Loss | Low Loss | |
| Insertion Loss | < 0.3 dB | < 0.15 dB | < 0.2 dB | < 0.15 dB |
| Return Loss | > 35 dB | > 35 dB | UPC > 55 dB APC > 60 dB | UPC > 55 dB APC > 60 dB |
