Description

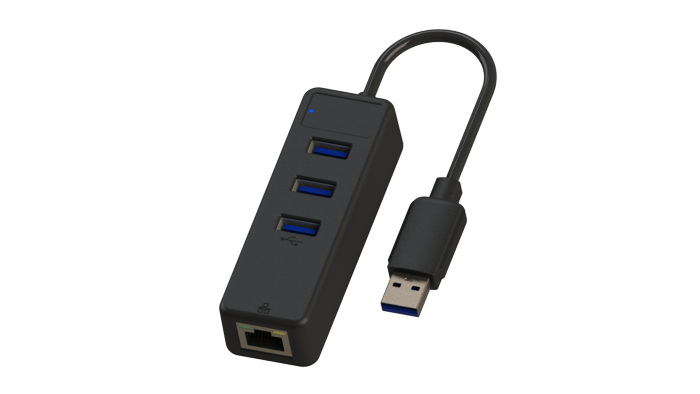

USB-A 3.0 to 3-Port USB-A 3.0 Hub with Gigabit Ethernet
Technical Specifications
• Host Connector: USB 3.0 Type-A Male
• Network: RJ-45 8P/8C Female Port
• Downstream USB Ports: 3 x USB 3.0 Type-A Female
• Power: USB Bus-Powered
• OS Compatibility: OS Independent
• Warranty: 1-year limited
Installation Instructions
1. Connect the adapter directly to the USB-A port of the device
2. Check if the LED light is on
3. Connect the Ethernet patch cable
Note: The cable is sold separately. It is recommended to use Cat.6 cable for best performance
4. Check the router’s documentation for installation information
5. Supports MAC address pass-through (MAC clone)
Troubleshooting Tips
• Check if the LED light is on
• Test the Ethernet cable with another device
• Try another USB-A port
• USB power is limited by the computer port
• USB ports are not designed for charging
• Restart your computer
• Note: Not compatible with Nintendo® products
• For more troubleshooting information, please visit: www.je-net.com.tw and search for UA3H1-0151-BK
• Please contact support@jyheng.com.tw for support
